Pass variables between Workflows
You can pass variables between Workflows. This is useful if you want to use a previously created variable within the scope of a single Workflow. For example:
- You want to collect user information in one Workflow, then validate it in a sub-Workflow.
- You have a Workflow that stores items in a virtual shopping cart, and you want to process payment for those items in a sub-Workflow.
- You have some condition in one Workflow, and you want a sub-Workflow to behave differently based on that condition.
From a parent Workflow to a sub-Workflow
Setup your input variable
- In your sub-Workflow (the one you want to pass the variable to), create a new Workflow variable.
You can pass any kind of variable from your parent Workflow, but your sub-Workflow needs to treat it as a Workflow variable.
- Select your sub-Workflow’s Entry Node.

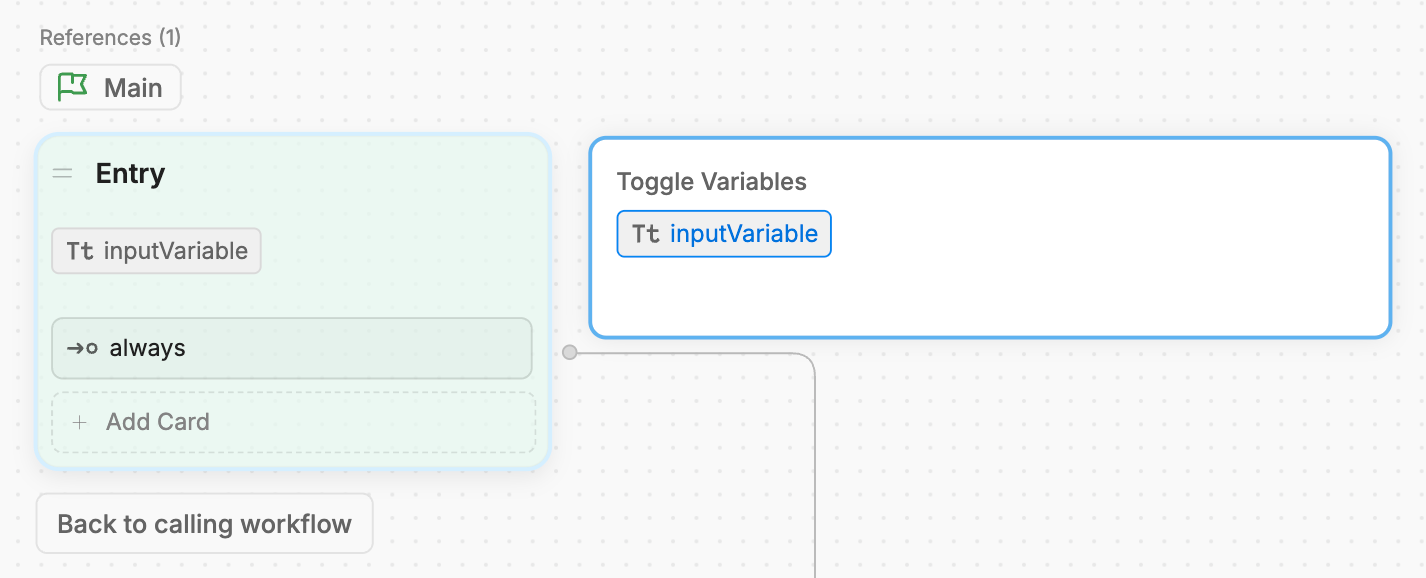

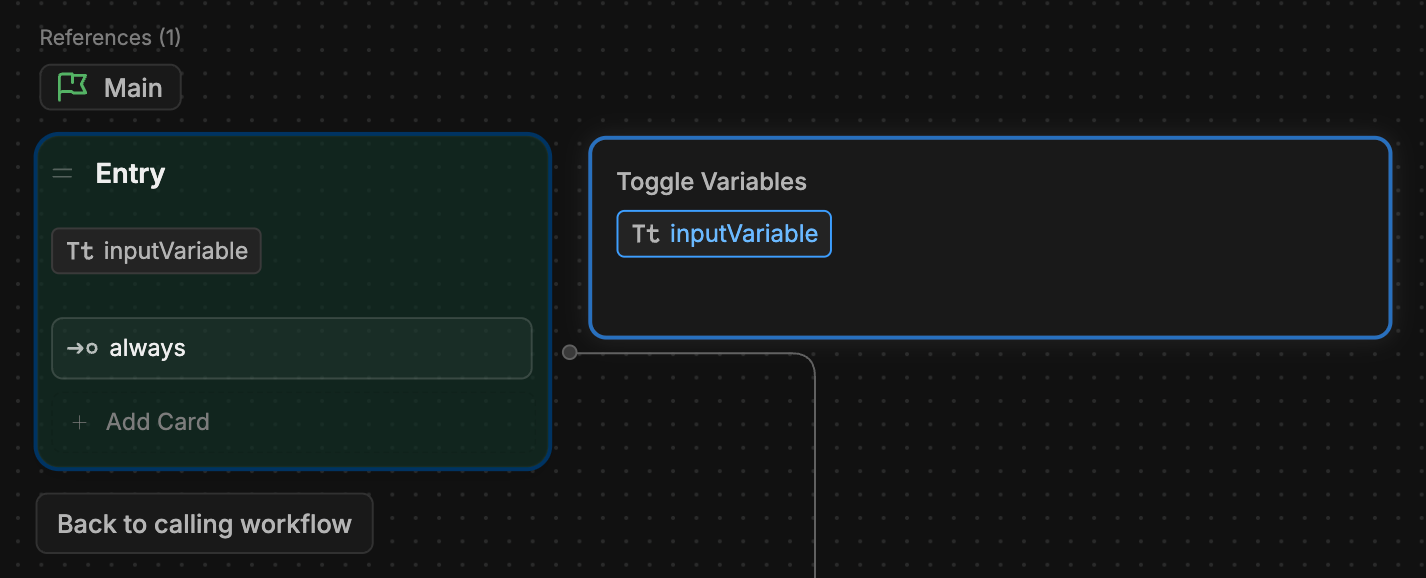

- Under Toggle Variables, select the variable you just created:
This tells the parent Workflow that your sub-Workflow is expecting some input.
Pass the variable to the sub-Workflow

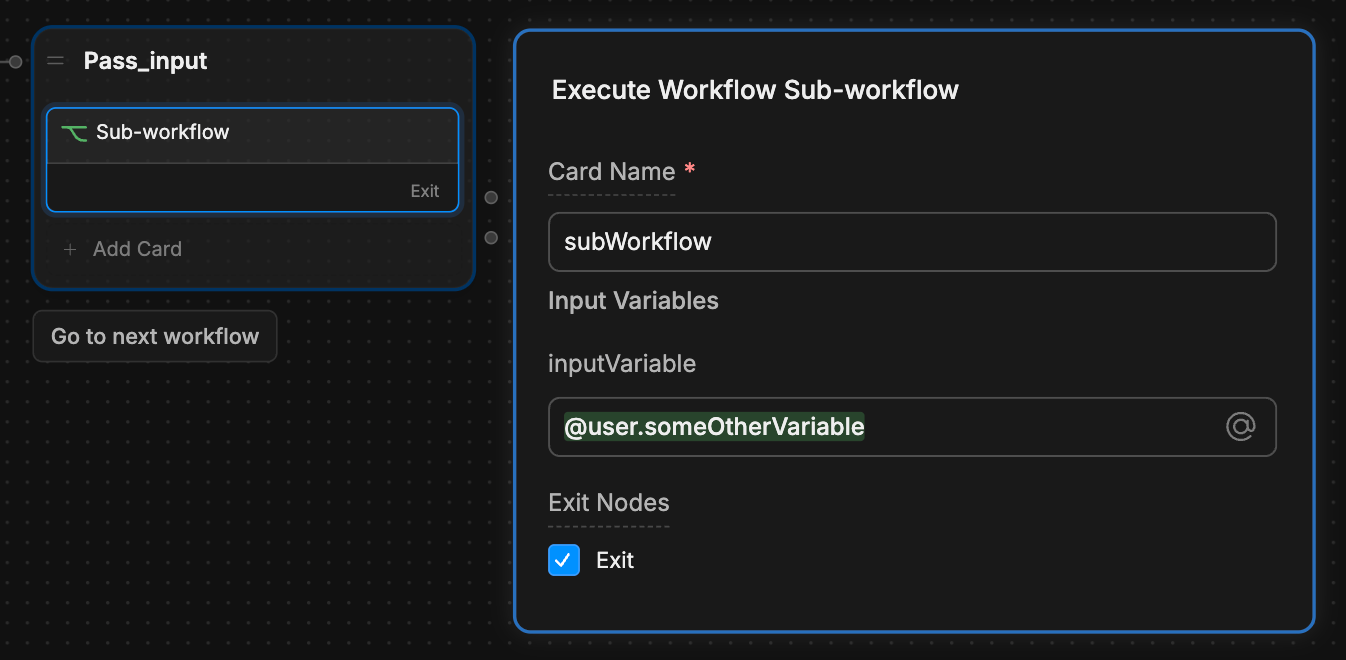

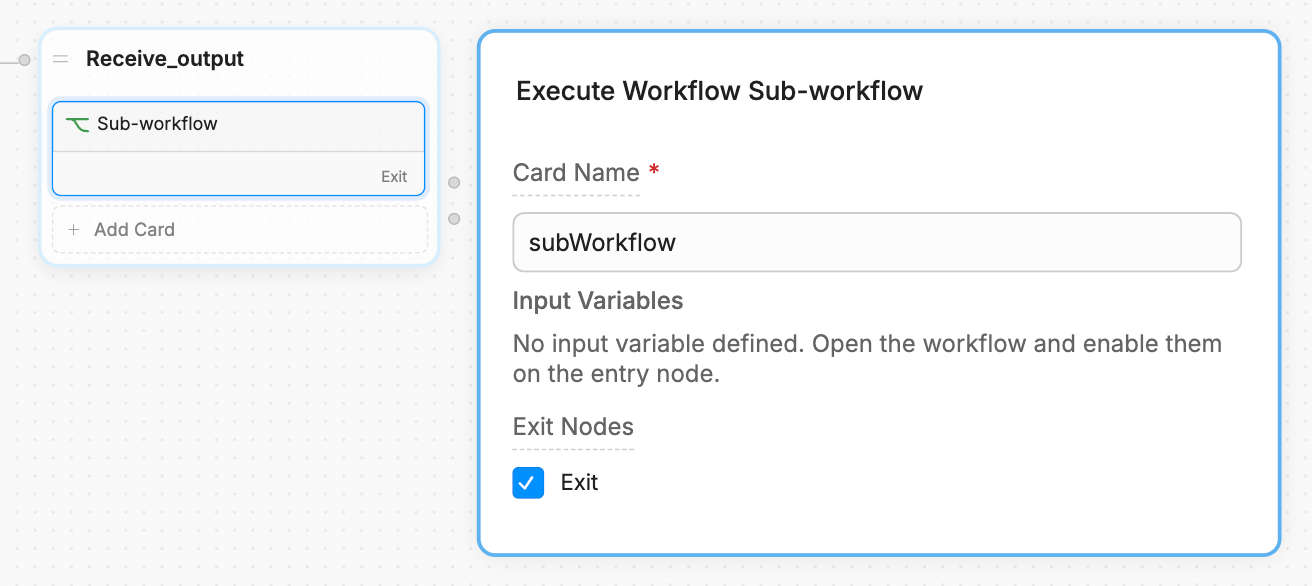

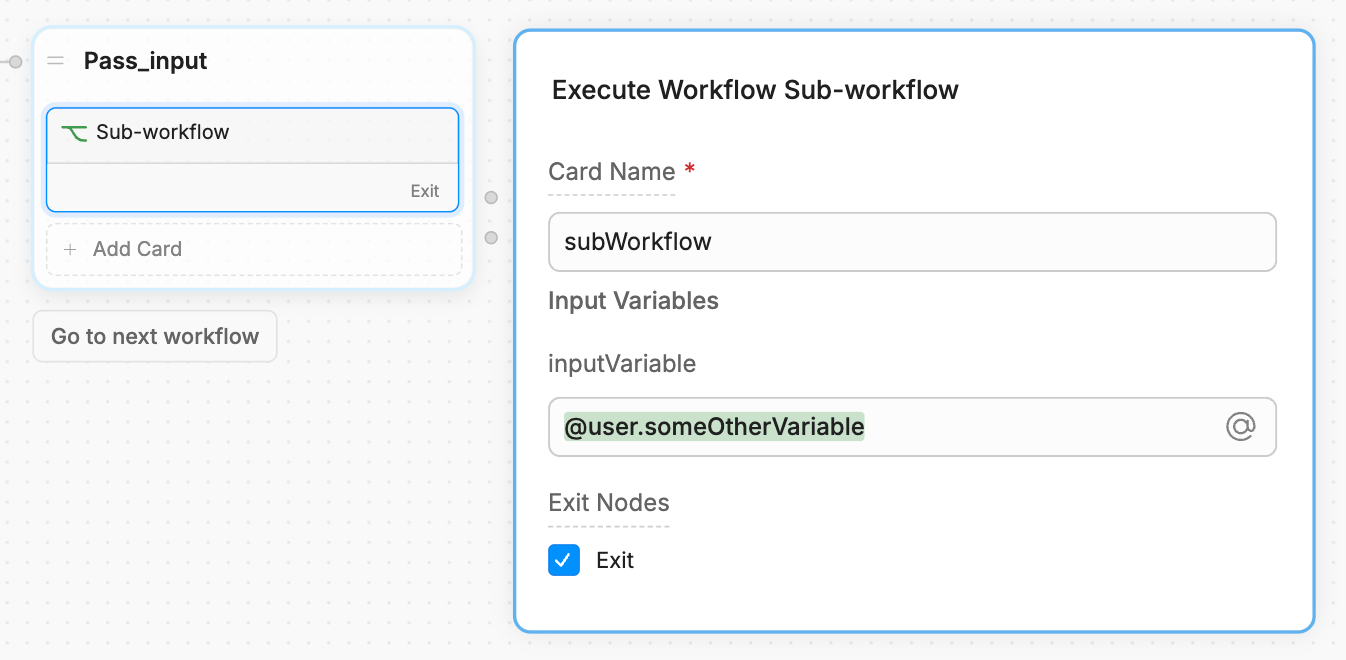

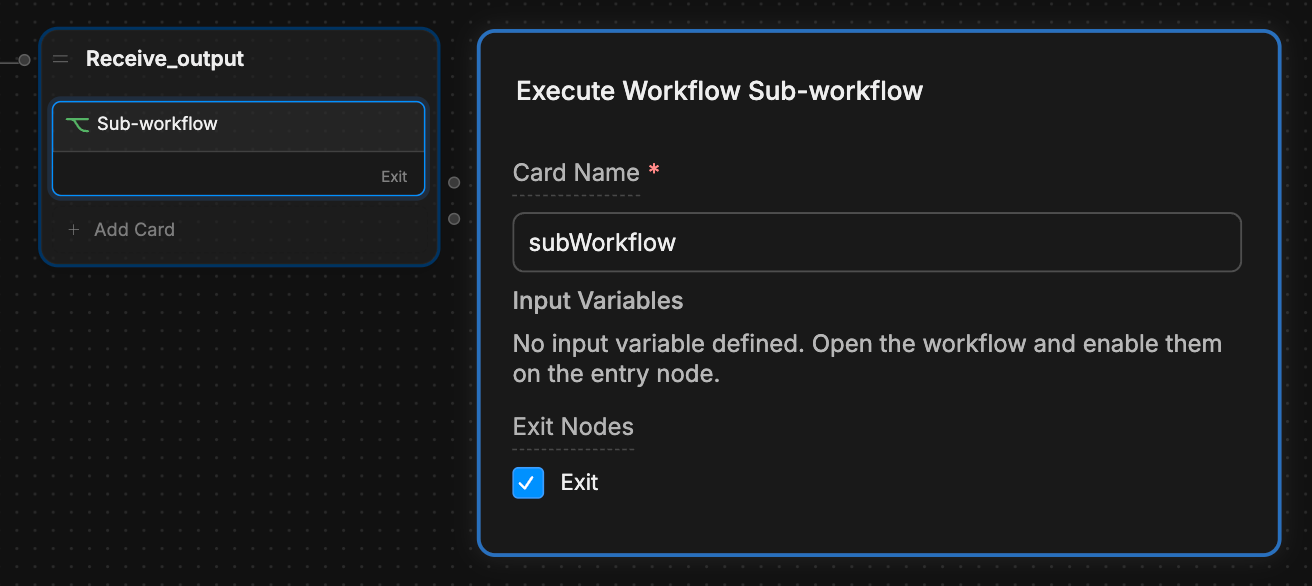

In your parent Workflow, select the Card that transitions to the sub-Workflow. It should display the input variable you just created:
You can manually enter a value to pass to the sub-Workflow, or use a previously created variable from your parent Workflow.
Now, whatever value you pass from your parent Workflow will be available in your sub-Workflow as a Workflow variable.
From a sub-Workflow to a parent Workflow
Pass your output variable
- Select your sub-Workflow’s Exit Node.

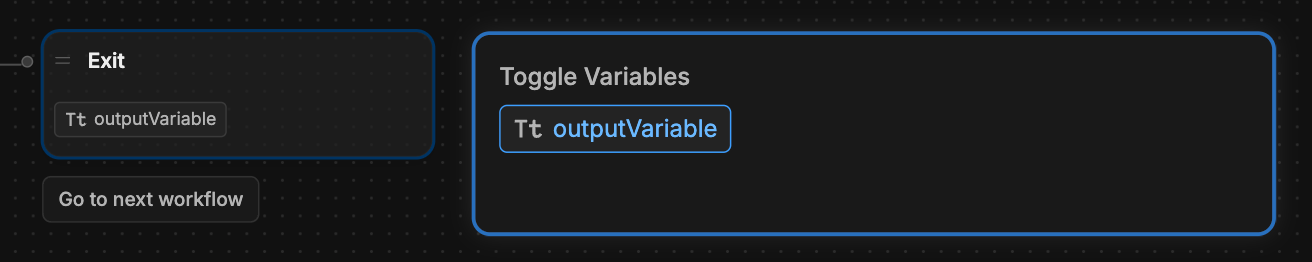

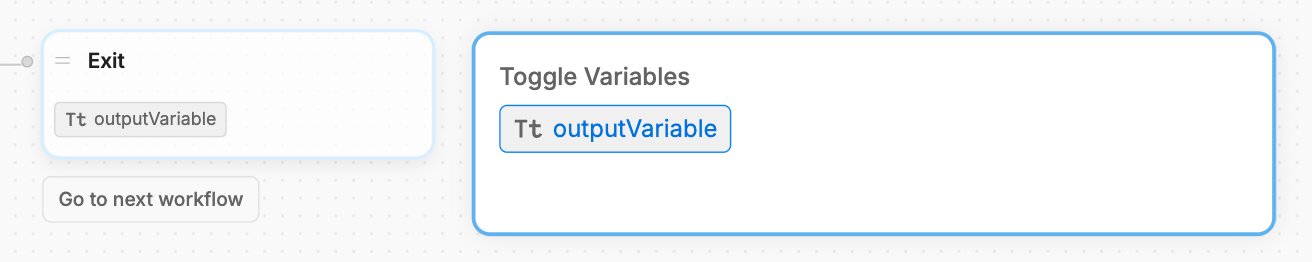

- Under Toggle Variables, select the variable you want to pass:
This tells the parent Workflow to expect some output from the sub-Workflow.
You can only pass Workflow variables from a sub-Workflow to a parent Workflow.
